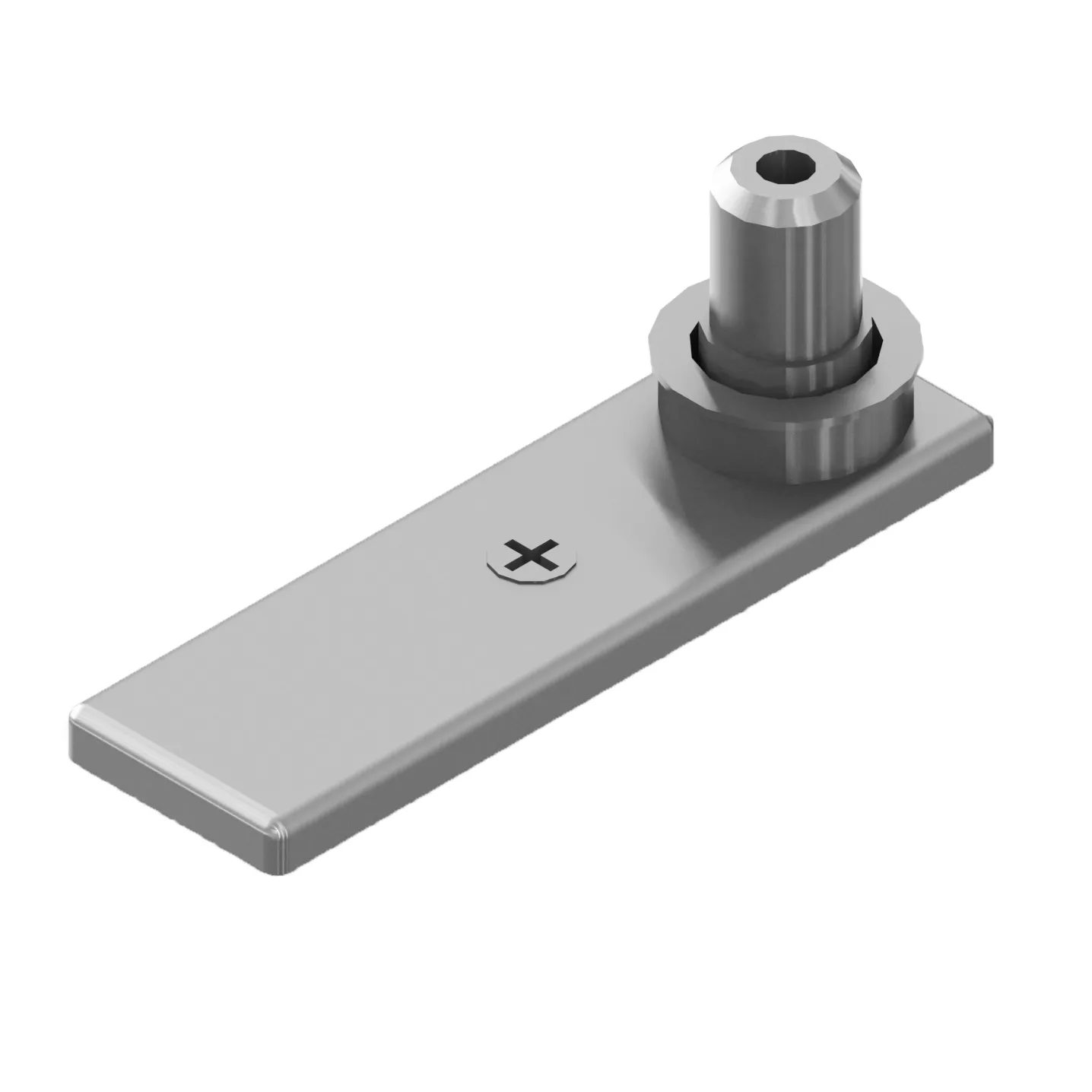

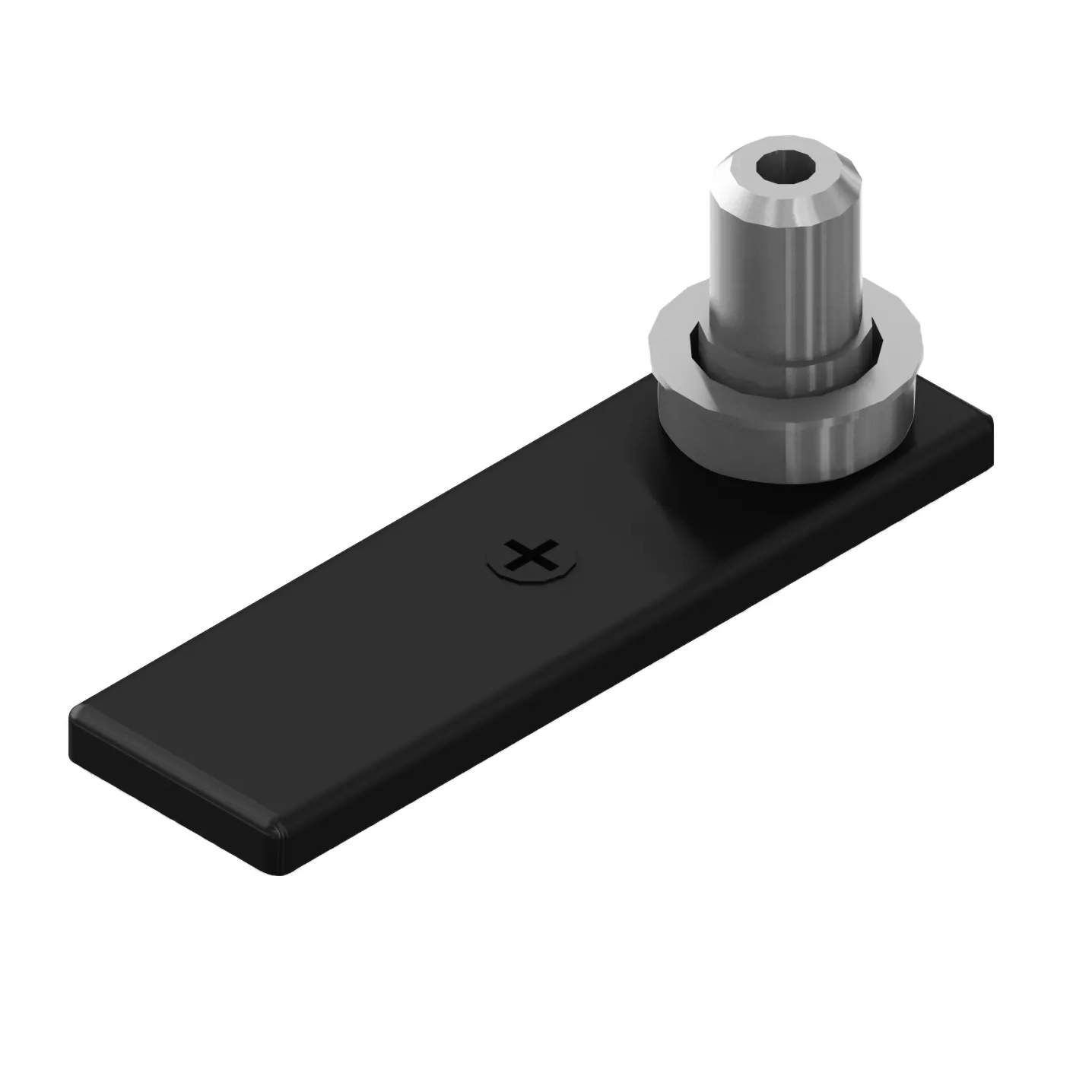

PPIV Series Patch Pivot

GGH’s PPIV Series Patch Pivot is a versatile bottom door free-swinging pivot designed for floor mount applications, making it an excellent addition to commercial doors, office partitions, interior fit-ups, wine rooms, and more. This system offers two adjustable speed settings with a convenient Hold Open function at 90 degrees, providing smooth and reliable operation. It also features a custom aluminum cover plate for added durability and style.

Finishes Available:

• Brushed Stainless
• Polished Stainless
• Matte Black
• Satin Brass

Key Features

• Maximum Weight: 100KG (220.462Lbs)
• Maximum Width: 39" (1000mm)
• Glass Thickness: 3/8" to 1/2" (10 to 12 mm)
• Material: SS304

Glass fabrication required. View CAD/PDF product drawings for more details.

For additional information or custom finish requests, contact us at .
